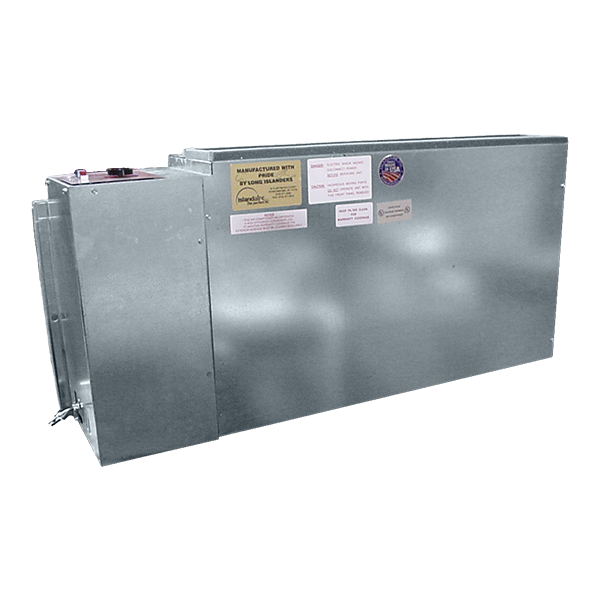

ISLANDAIRE PTAC Units

Available in cooling-only and cooling plus hydronic heat models Features

Cooling from: 7700-12000 Btu

Heating: 6300-17070 Btu

Islandaire EZ Series 16 is a replacement for the American Air Filter models of ENR, ENH, WY and YY units. Our commercial duty construction with heavy gauge galvanized steel and superior components create an efficient reliable unit. This design eliminates the need for any interior or exterior renovation.

Comfort & Dehumidification

• Quiet operation
• Intuitive controls
• Even heat monitoring checks room temperature and automatically adds a heat boost if necessary
• Separate thermostat settings (limiting) for cooling and heating nodes (digital only)
• Samples the room temperature in intervals to monitor and maintain desired temperature
• Optional constant fan mode for additional comfort options
• Dehumidification mode removes up to 3.2 pts per hour
• Reversible indoor air louvers for an additional airflow direction option

Sound Reduction Technology

• New 2-motor design allows the indoor motor to run at slower speeds, which reduces indoor sound levels
• The quiet, efficient compressor is mounted on vibration isolators, which absorb vibration-causing noise
• Permanently lubricated dual motors reduce noise
• High-density insulation helps keep outdoor noise outside

Commercial Grade Construction

• Islandaire’s advanced anti-corrosion protection protects the outdoor coil against deterioration and extends unit life, especially in harsh coastal environments
• Freeze Protection initiates heat if room temperature falls to 40 °F in an unoccupied room
• Stainless Steel endplates on both indoor and outdoor coil
• Permanently lubricated fan motors
• Tamper-resistant grille
• Indoor coil frost sensor protects the compressor
• Durable, powder coat paint finish

Health and IAQ

• Fresh-air vent
• Washable, antimicrobial filters

Energy Usage: Management

• Increase or decrease electric heat output by changing the power cord
• Set separate heat and cool range limits (digital only)
• Desk control ready
• Energy Management System Compatible

Maintenance and Installation Features

• Service error codes for quick diagnostics
• May be installed flush with floor
• Improved weather barrier
• Nationwide Service Network
• Modular design and pop out wiring modules
